MD -154B
7” Color TFT Module for elevator and buildings
The 7 ", 65K color MD-154B display provides exceptionally high contrast, color saturation and luminance and a series of performance improvements such as natural color, anti-glare screen and wide viewing angles.
More than a screen, with incredible functionality and price.
Global Display offers you a new form of completely dynamic and reliable communication, and equipped with the best features and advantages.
The MD-154B screen provides exceptionally high contrast, color saturation and luminance and a series of performance improvements such as natural color, anti-reflection screen and wide viewing angles.
The best of the MD-154B
- Compatibility and versatility

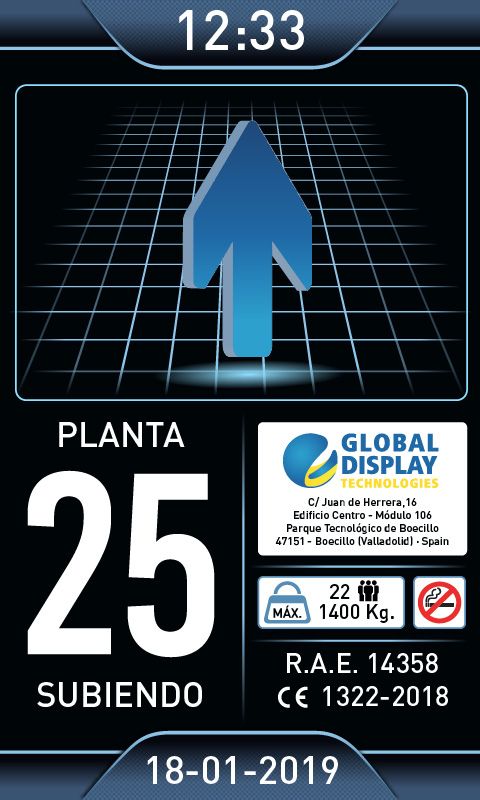

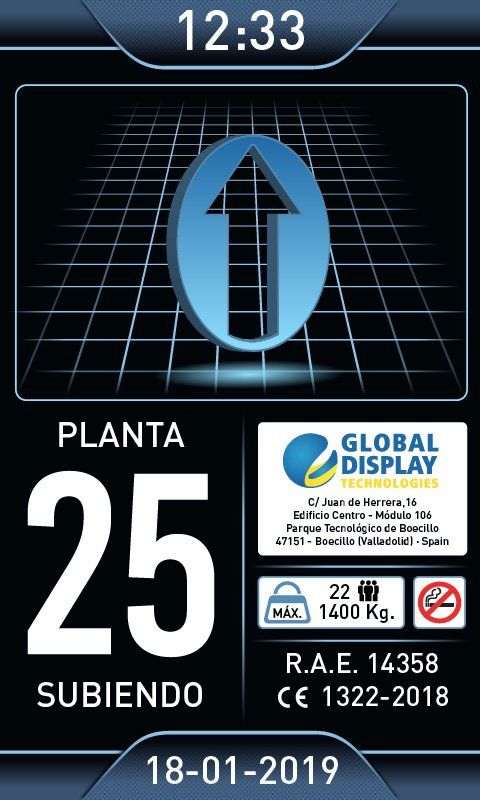

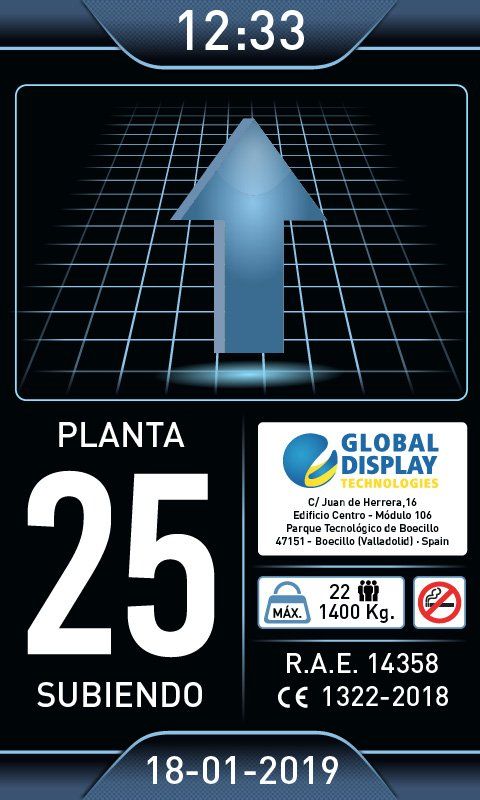

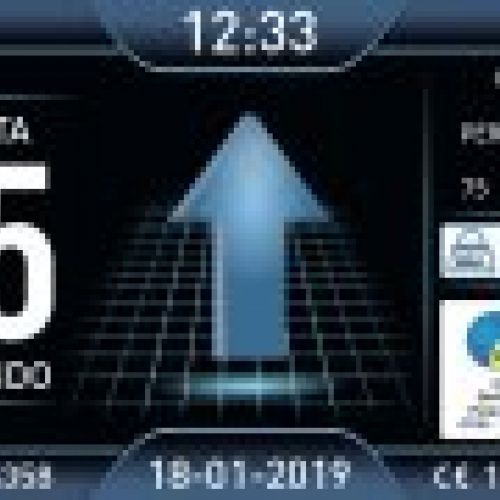

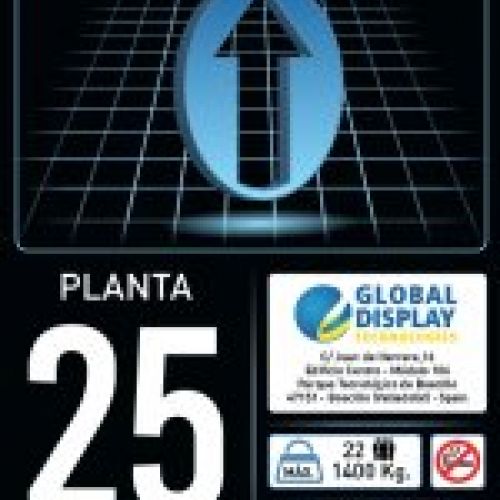

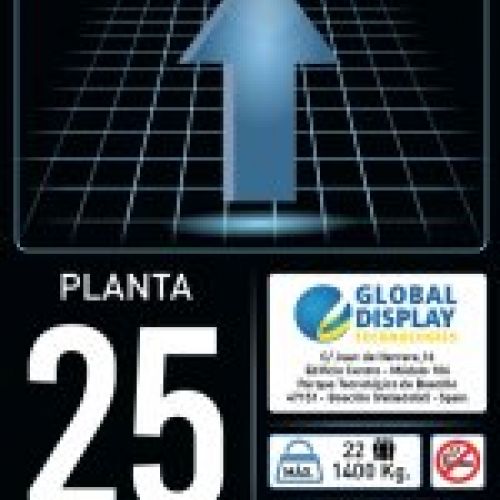

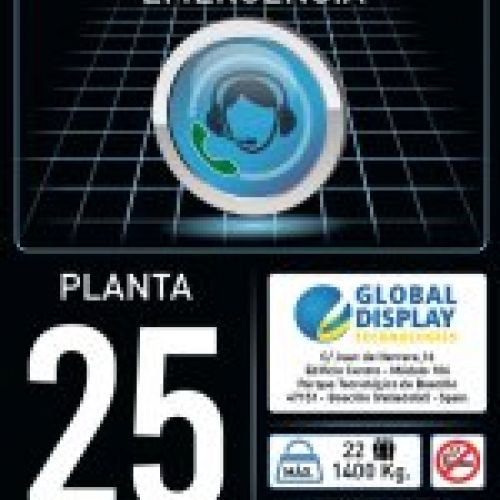

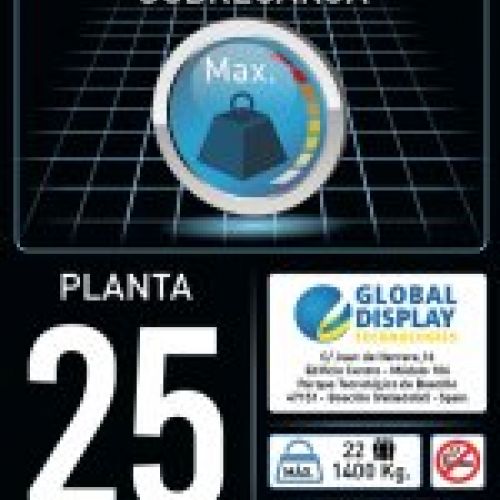

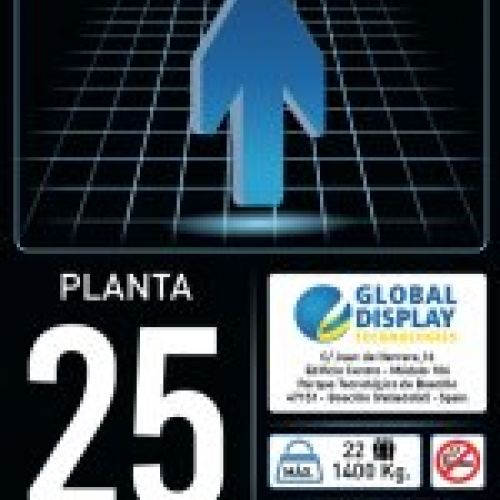

- 7 ”Color TFT Module. Horizontal and vertical orientation
- Has 65K colors
- Built-in speaker to play audio messages
- Modern and attractive with an INNOVATIVE touch

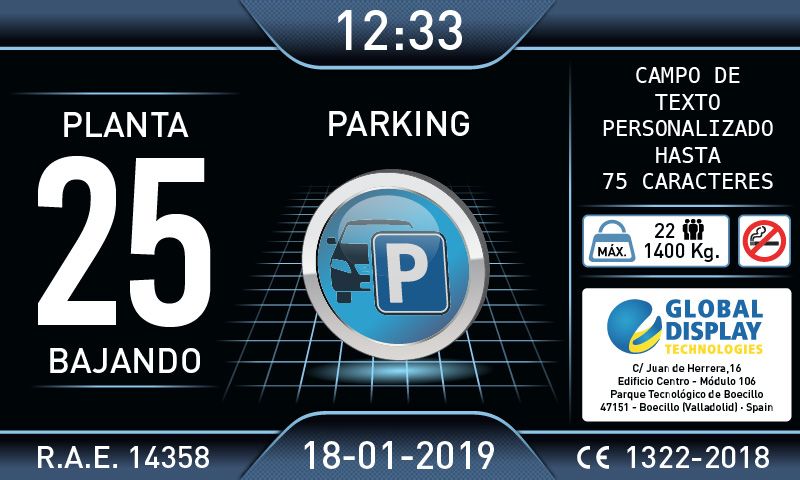

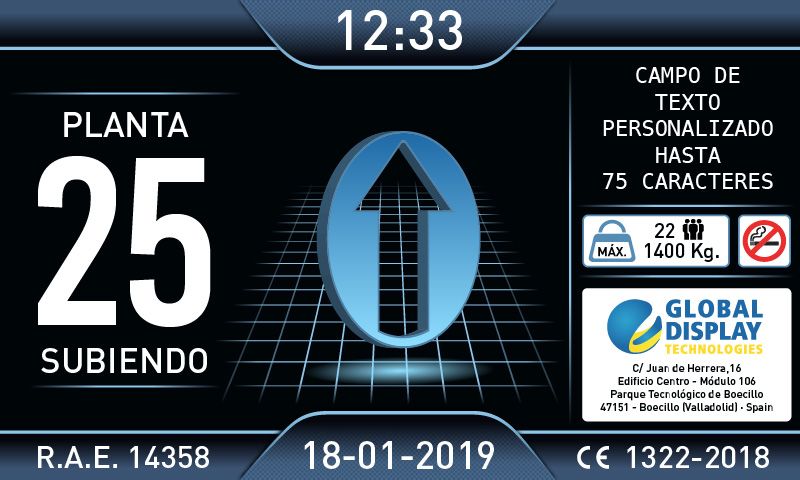

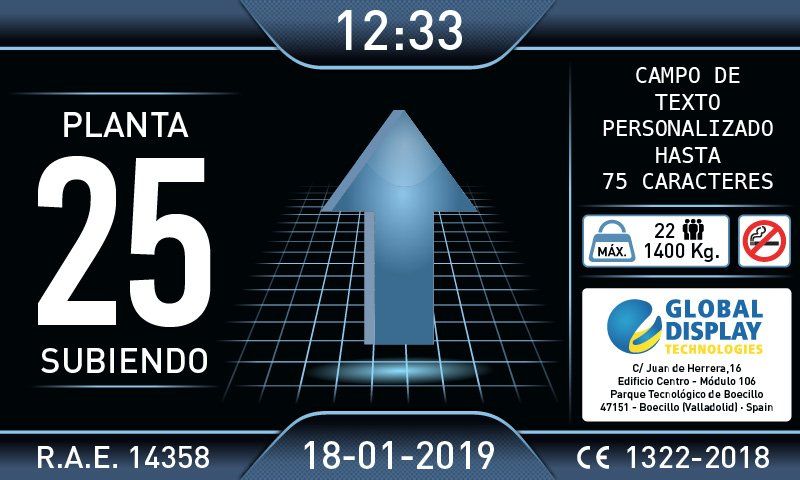

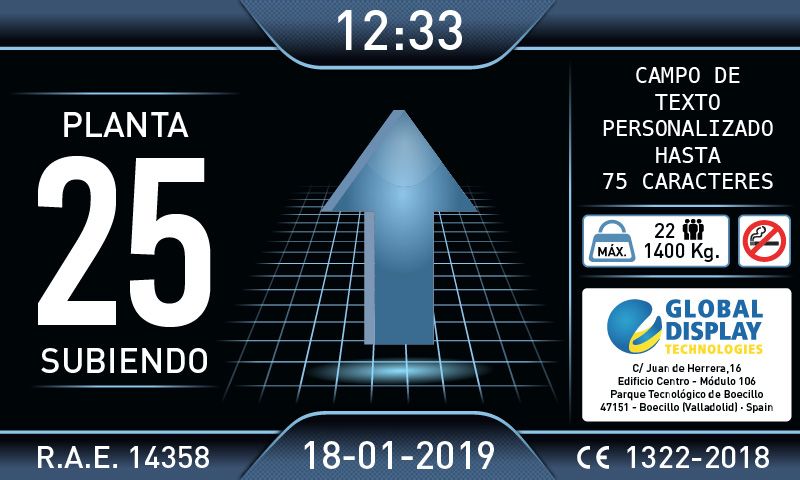

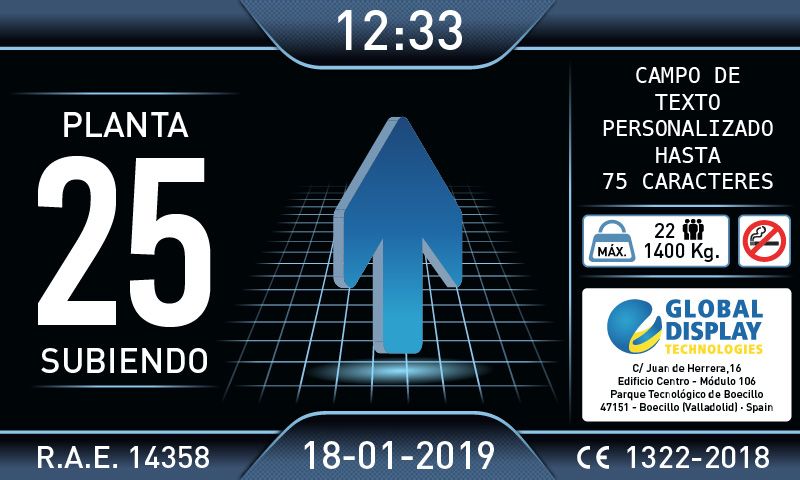

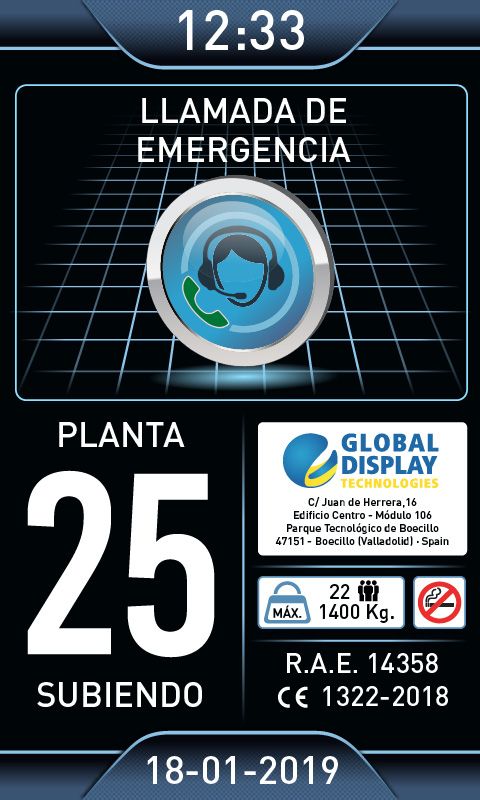

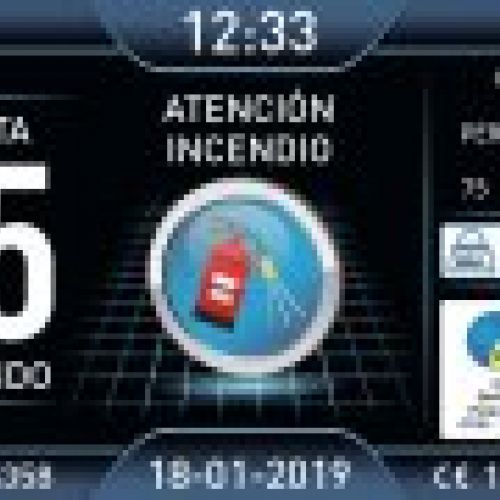

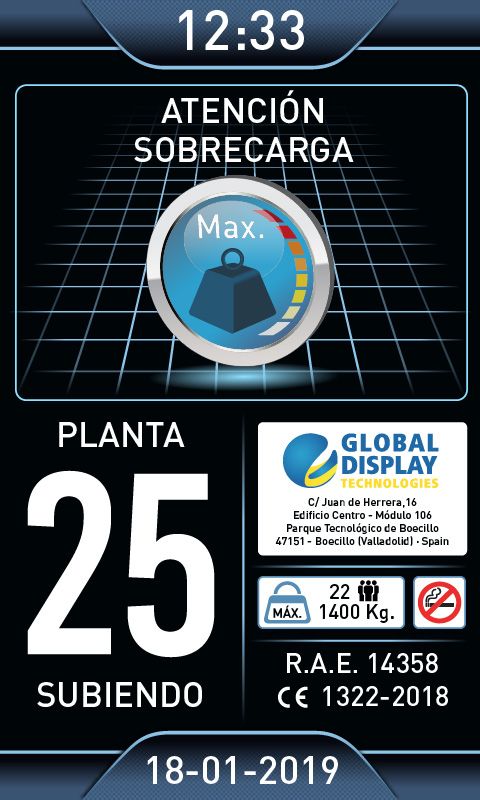

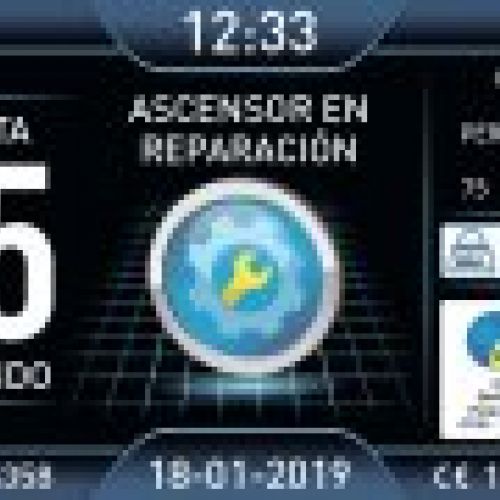

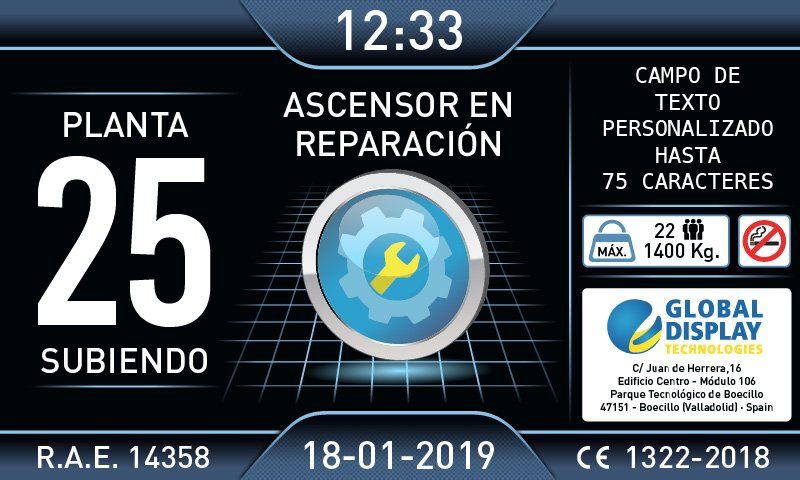

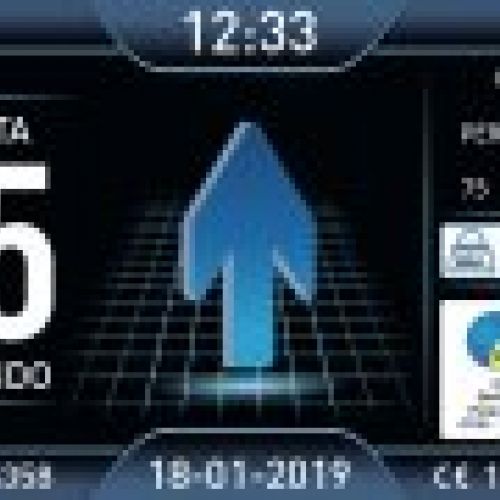

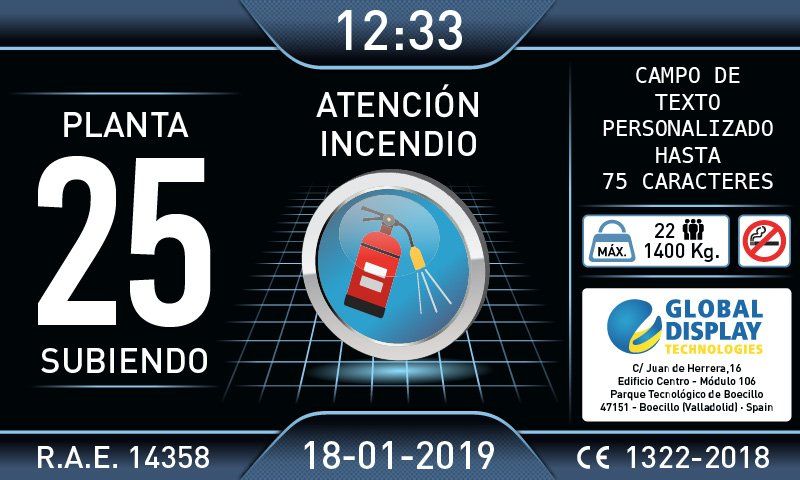

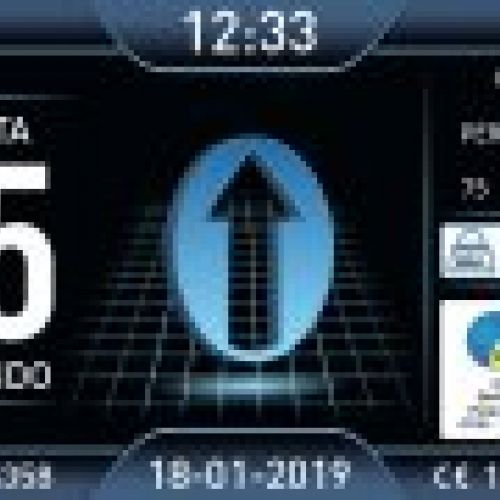

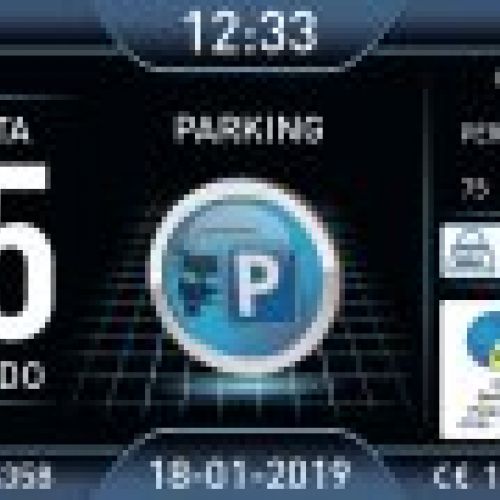

- Allows you to choose between different designs, special images and animations
- High luminance
- Incredibly sharp and exciting images
- Anti-glare treatment
- Wide viewing angle
- LED backlight
- Good performance at a very competitive price
MD-154B Features
| Dimensions | 180x140x17.6 mm. |
| Fastening screws in rectangle | 133x133 mm. |
| Orientation | Horizontal / Vertical |
| display | 7-inch TFT display - 800x600 pixels |
| Colors | 65.536 RGB |
| Viewing angle | 140º long side, 120º short side |
| Luminance - Contrast | 800 cd/m2 - 1:500 |
| Temperature range | Storage: -30ºC to 70ºC (240 h.) Operation: -20ºC to 60ºC (240 h.) |
| Microcontroller | ARM Cortex M0 32-bit |
| Speaker | Built-in (Volume with potentiometer) |
| Emergency LEDs | Available according to protocol |
| Power supply | 24 VDC (8 VDC - 30 VDC) 100 mA (2,4W) |
| Communications ports | Parallel / Autonomous (only connector with 8 + 2 wires) configurable CAN Protocol (terminator with jumper) RS-485 Protocol (optional, excluding with CAN) |
